Automotive TPMS Four-Tire Pressure Monitor, Specification: Beep Sound Version Internal Sensor(Japanese)

1. Operating voltage: 3.7V
2. Operating temperature: -20°C to 70°C
3. Waterproof rating: IPX7
4. Pressure range: 0-5 Bar
5. Transmitting frequency: 433.92 MHz
6. Transmitting power: 10dBm
7. Charging voltage: DC 5.1V

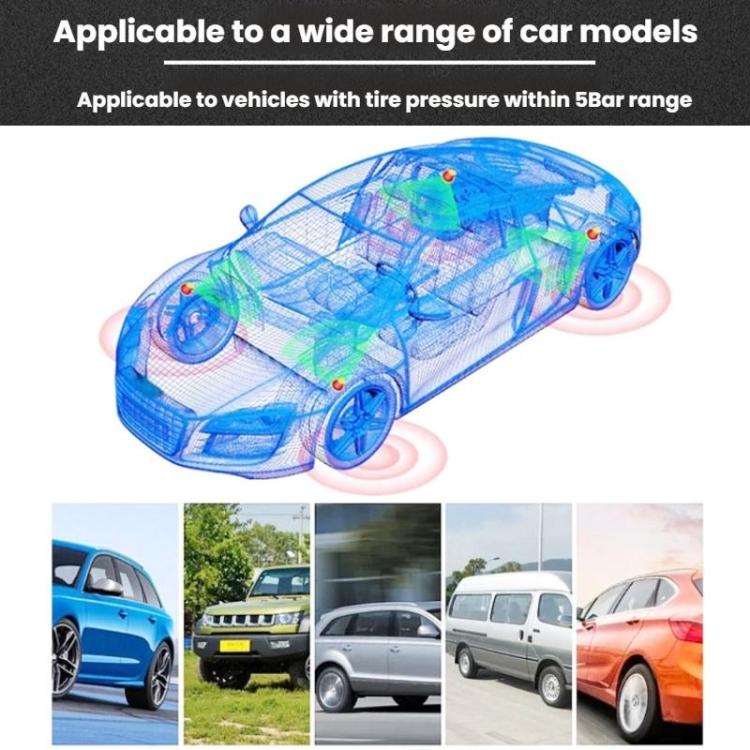

8. Suitable for vehicles with tire pressures within the 5 Bar range
9. IPX7 waterproof, withstands 30 minutes of submersion without any issues. It can operate smoothly even in rain, splashing water, navigating puddles, and flooded parking spaces.

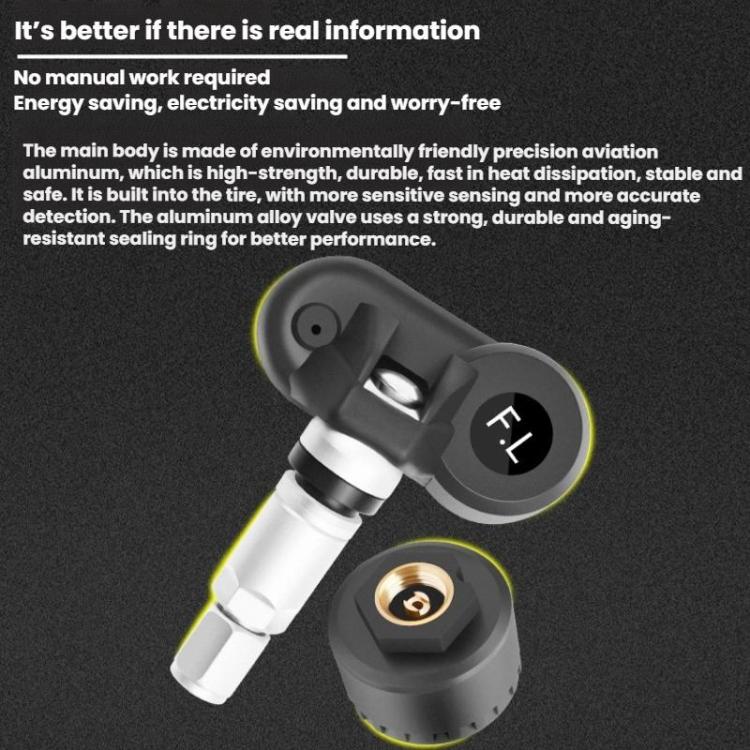

10. The main body is made of environmentally friendly, precision-engineered aviation aluminum, offering high strength and durability, fast heat dissipation, and a secure, stable design. Built into the tire, it provides sharper sensing and more accurate detection. The aluminum alloy valve stem features a strong, durable, and age-resistant seal for enhanced performance.

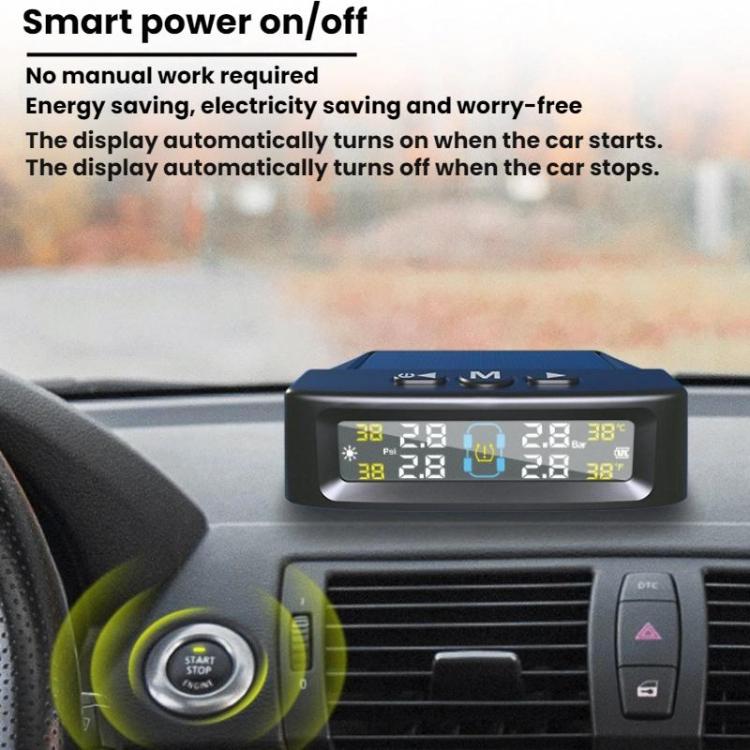

12. Intelligent power on/off, no manual operation required, saving energy and worry.

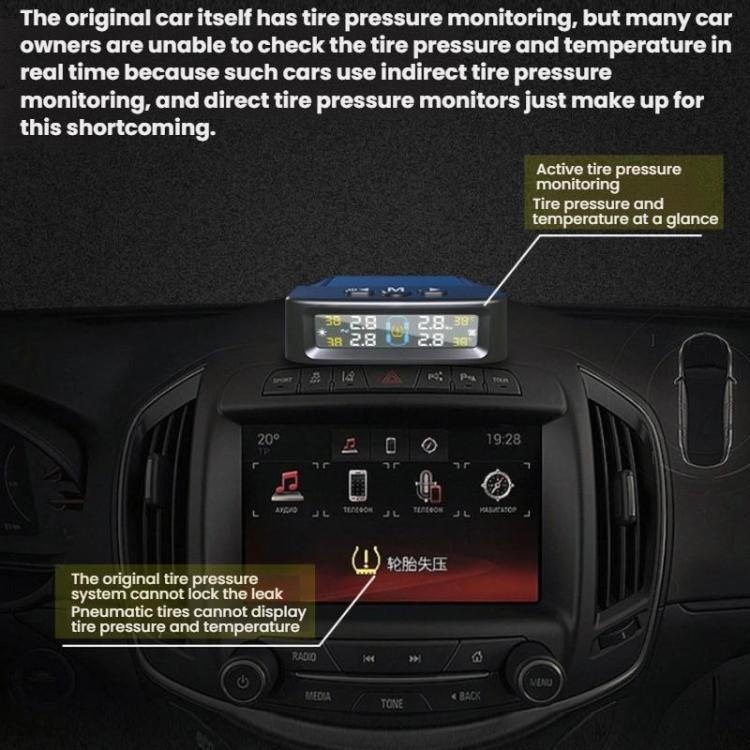

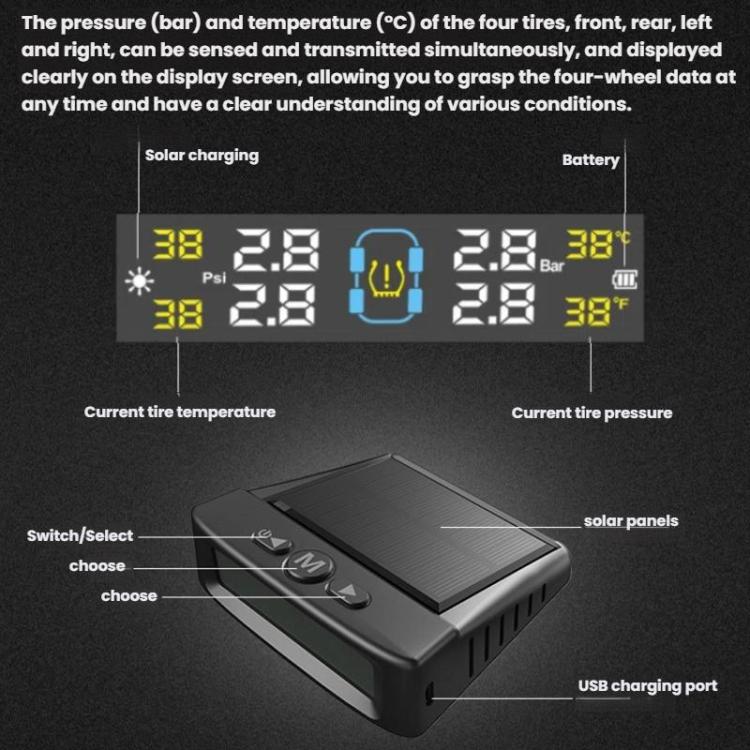

13. The pressure (bar) and temperature (degrees Celsius) of all four tires are simultaneously sensed and transmitted, clearly displayed on the display, allowing you to monitor all four wheels at all times.

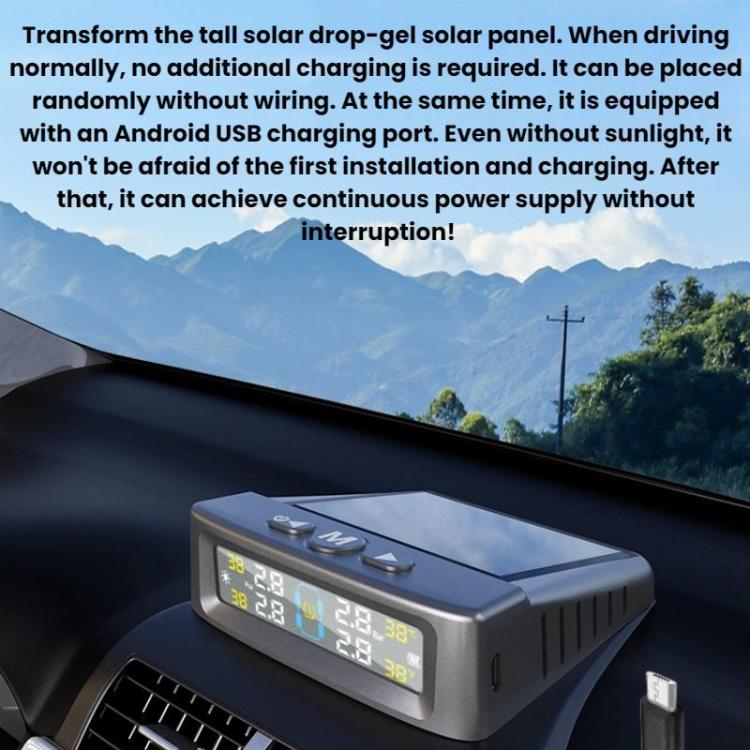

14. The tall, reusable solar panel allows for easy placement without the need for additional charging during normal driving. It also features an Android USB charging port, ensuring seamless power after initial installation and charging even in the absence of sunlight.

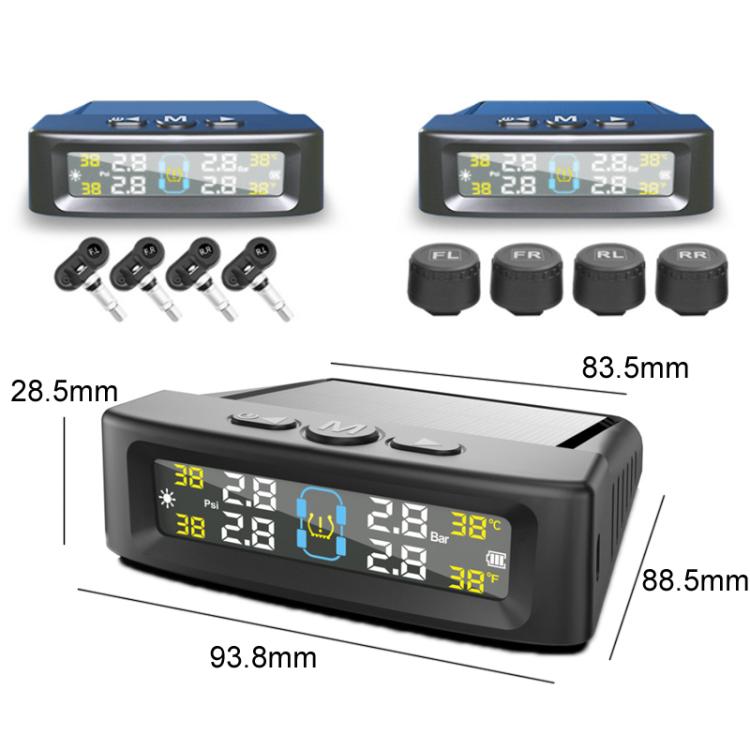

15. Dimensions: 93.8 x 88.5 x 28.5 mm

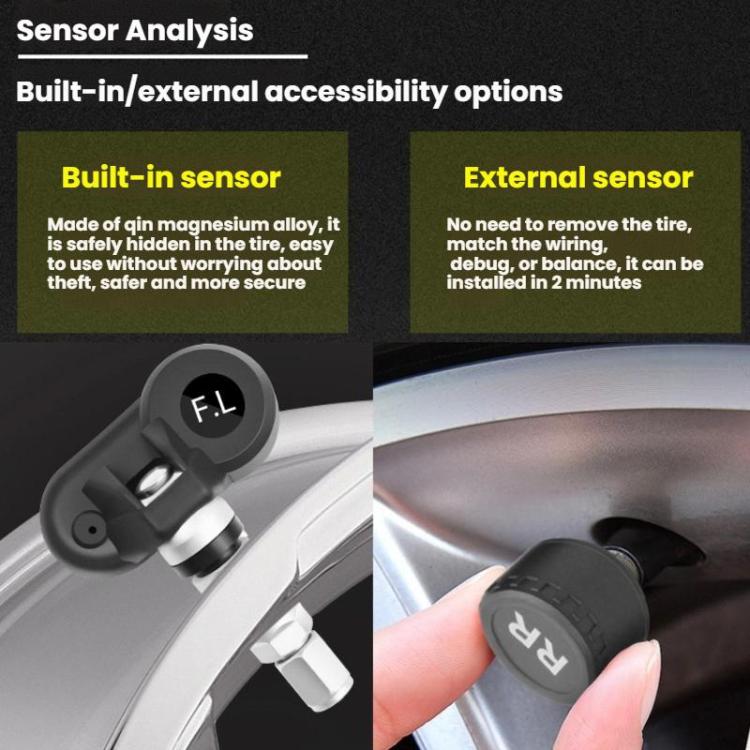

16. External sensor package includes: 1 host + 4 sensors + 1 charging cable + 4 anti-theft nuts + 1 wrench + instruction manual + 1 double-sided tape + gift box

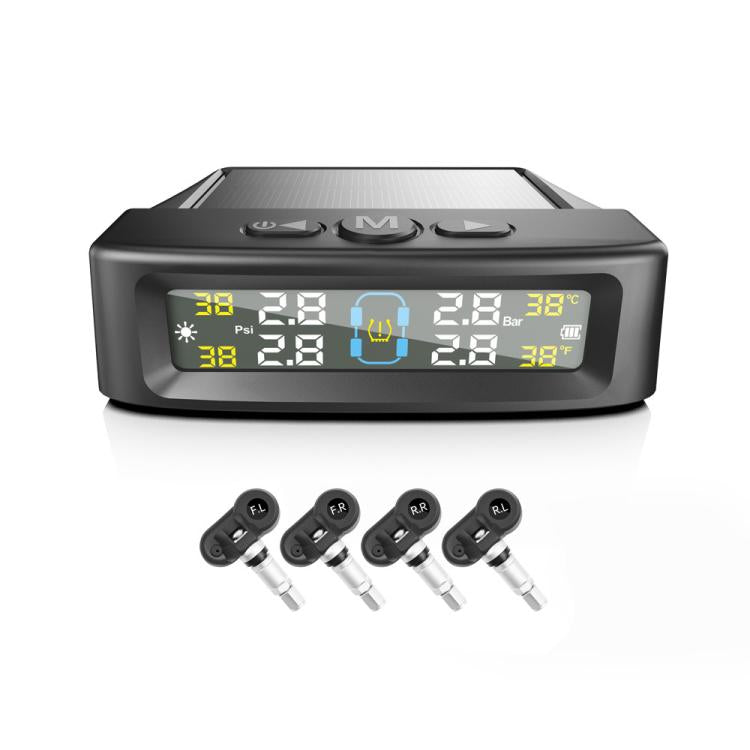

17. Internal sensor package includes: 1 host + 4 sensors + 1 charging cable + 4 alloy valve stems + 4 screws + instruction manual + 1 double-sided tape + gift box

Note:
1. The sensor and receiver are factory-paired. Re-pairing is required only when changing sensors or receivers.
2. When the display detects a vibration signal while in sleep mode, it automatically powers on and displays tire pressure and temperature data. It automatically goes into sleep mode after parking for more than 10 minutes.
3. Press the "-" key for 3 seconds to power the device on and off.
4. When the tire is running at a speed of 20 km/h or above, the sensor pressure and temperature data are automatically updated.

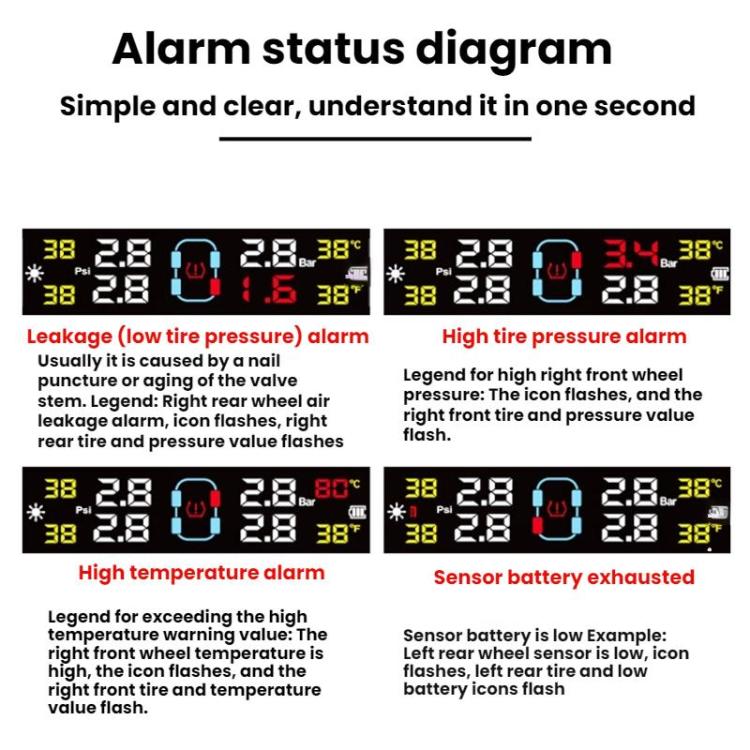

5. Alarm Description

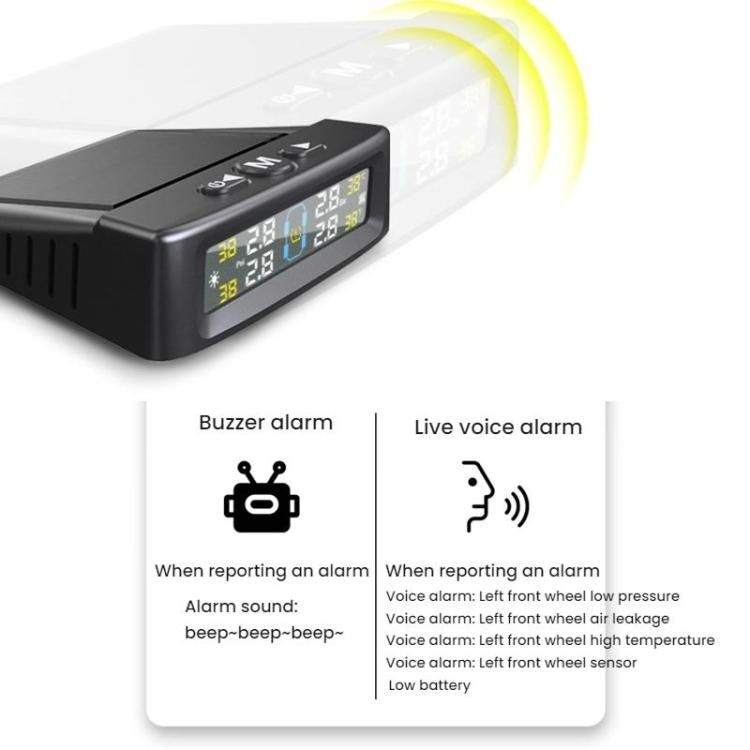

- When tire pressure exceeds the set safety range or there is a leak, the pressure value and alarm symbol for the corresponding tire on the display flash, and the buzzer emits a series of "bi.bi.bi" sounds. Pressing any key will silence the alarm, but the fault icon will remain displayed.
- When tire temperature exceeds the set safety range, the temperature value and alarm symbol for the corresponding tire on the display flash, and the buzzer emits a series of "bi.bi.bi" sounds. Pressing any key will silence the alarm, but the fault icon will remain displayed.
- When the tire sensor battery is low, the corresponding tire symbol and transmitter low battery symbol on the display flash, and the buzzer emits a series of "bi.bi.bi" sounds. Pressing any key will silence the alarm, but the fault icon will remain displayed.
